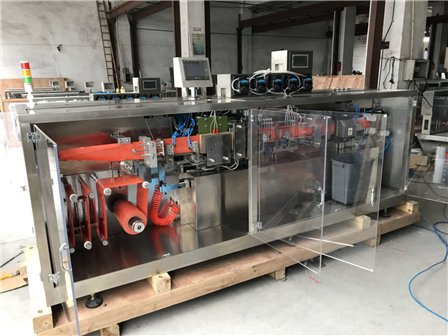

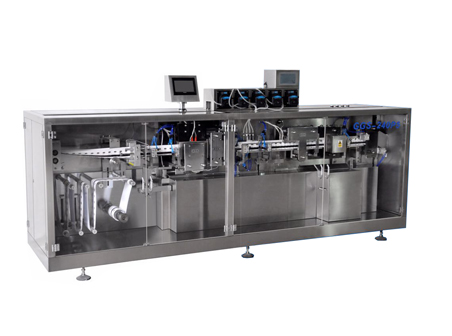

GGS-240P5 Automatic Filling & Sealing Machine is suitable for all kinds of liquid and pasty filling in PVC packing materials including oral liquid, pesticide, perfume, cosmetics, jam and food, etc.
It is one PVC film material feeding and forming bottles. Due to this reason, the machine can make flat bottom standing bottles.
First, the machine heats and forms PVC bottles from two PVC films, and then bottles are top open, ready for filling. The machine fills liquid in ampoules and seals the top. Finally, excessive PVC packing materials are cut and PVC ampoules are output.
The bottles output are 5 bottles each cut, production capacity of the machine can reach 125 bottles per minute.
According to requirements, this machine can work in-line with downstream packing machine.
HC high speed, high precision and high-end motion controller.
The main motor speed is by stepless frequency control.
PVC film pulling tensile is by servo motor control.
Touch screen and PLC human-machine-interface, easy operation.
Automatic PVC film feeding, a roll of PVC film is folded from middle to use.
There are photoelectric pattern visual calibration function for ampoule front and back pictures. Product packing is elegant, meeting high standard of packing requirements.
Using electronic peristaltic pump device. And mechanical piston pump control. Easy adjustment.
High filling precision. No dripping, no bubble, no overflow.
Parts in contact with the product are high quality stainless steel 316L, machine housing are all SUS304 stainless steel. Comply with GMP standards.
Can make flat bottom ampoule to stand up.
| Model | GGS-240P5 |
| Max forming depth [mm] | 12 |
| Cutting frequency [times/min] | 25 |
| Acking material packing [mm] | PVC/PE PET/PE(0.2-0.4)*240 |
| Filling capacity [ml] | 1-50 |
| Power [kw] | 7 |
| Voltage | 380V/50Hz |
| Weight [kg] | 1200 |
| Dimensions [mm] | 3200*850*1400 |
