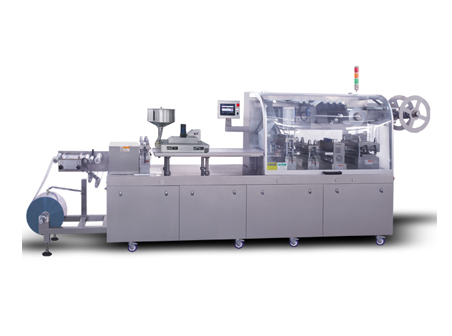

DPP-260 is plate type heat-seal high speed ALU/PVC, ALU/ALU blister packaging machine. It automatically performs preheating, house forming, feeding, heat sealing, code embossing, perforating, mould cutting etc. This machine is suitable for packaging a variety specifications of pharmaceutical products such as sugar coated or uncoated tablets, capsules, softgels, injection etc., it is also widely used for packaging foodstuff, electronics, medical tools, metal products.
1. One machine for both ALU/PVC and ALU/ALU packaging applications.
2. 1.6m distance from blister thermoforming to sealing station, stable performance.
3. Plate thermoforming and plate heat-sealing (cross-line/dot).
4. Mould quick release devices for easy replacement.
5. Specially made Aluminum alloy track for mould is optional for easier adjustment.
6. Large-size cam increased blister depth to 26mm, meeting special product requirements.
7. Open access door, easy repair and maintenance.
8. Modular construction, easily separated and installed for allocation, guaranteeing machine accuracy, stability and levelness.
9. All product contact parts are 316L stainless steel and high grade aluminium alloy material, avoids cross pollution, comply with GMP standards.
10. No waste cutting method can save packing materials up to 10%.
Options
Dedicated product feeder
Eyemark calibration
Camera visualization
Safety cover
Vacuum rejecting and sorting
| Model | DPP-260 |
| Cutting Frequency [times/min] | 20-240 |
| Capacity [pcs/h] | 18000-23600 |
| Max Forming Area [mm] | 160x240 |
| Max Forming Depth [mm] | 26 |
| Travel Adjusting Range [mm] | 40-160 |
| Standard Plate Size [mm] | 80x57 |
| lidding Foil Width and Thickness [mm] |
PVC 250 x 0.15-0.45 PTP 250 x 0.02-0.03 |
| Total Power [kW] | 1.5+4.5 |
| Compressed Air Consumption [m'/min] | ≥0.2 |
| Cooling of Mould Water Consumption [L/h] | 60 |
| Dimensions [mm] | 3500x1200x1800 |
| Machine Weight [kg] | 2600 |
