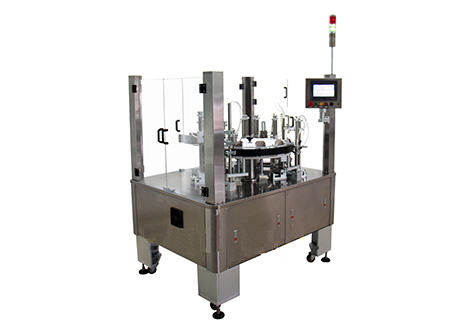

Rotary Disc Vertical Cartoning Machine
Product Details:
Model:
Certification:
CE, cGMP, ISO9001:2010
Delivery Time:
60~90 days upon down payment and technical clarification
Payment Terms:
T/T, L/C
The machine is mainly used for vertical automatic packaging of carton, widely used in the industry, food industry, cosmetics industry, electronic industry.
Working process
Suck the box into the star wheel.
Fold box lower small flap.
Press both lower big flaps.
Flatten both big flaps.
Put product into box. .
Fold box upper small flap.
Press both upper big flaps.
Flatten both big flaps.
Product push out.
Working process
Suck the box into the star wheel.
Fold box lower small flap.
Press both lower big flaps.
Flatten both big flaps.
Put product into box. .
Fold box upper small flap.
Press both upper big flaps.
Flatten both big flaps.
Product push out.
This machine is designed for manufacturers with multiple sizes of packaging cartons.
Low cost and small footprint. Suitable for boxes of all sizes.
The machine is a multi-functional vertical automatic cartoning machine, and the replacement specification changes the mold time.
The advanced PLC control system combined with the 5.7 color touch screen control panel makes it easy to set and change packaging parameters.
Option
Leaflet Inserting, Hot Glue sealing, Hot Ribbon Date Code, Embossed date Code.
Low cost and small footprint. Suitable for boxes of all sizes.
The machine is a multi-functional vertical automatic cartoning machine, and the replacement specification changes the mold time.
The advanced PLC control system combined with the 5.7 color touch screen control panel makes it easy to set and change packaging parameters.
Option
Leaflet Inserting, Hot Glue sealing, Hot Ribbon Date Code, Embossed date Code.
| Machine Model | DDU-50 |
| Capacity [boxes/min] | 20-50 |
| Max box size [mm] | 200 x 80 x 80 |
| Min box size [mm] | 60 x 20 x 20 |
| Box paper | 250-350g/m3 |
| Motor power [kw] | 1/4HP 15:1 |
| Power supply | 220V 50/60HZ 1P |
| Machine noise | ≤80dB |
| Gas source [Mpa] | 0.5-0.8 |
| Compress air consumption | 150L/min |
| Dimension [mm] | 1100 x 1500 x 1900 |
| Weight [kg] | 250 |
