Fully Automatic Sticker Labeling Machine
Product Details:
Model:
Certification:
CE, cGMP, ISO9001:2010
Delivery Time:
60~90 days upon down payment and technical clarification
Payment Terms:
T/T, L/C

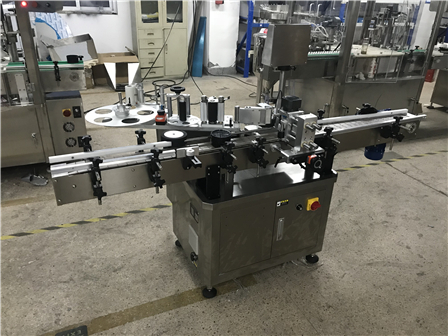

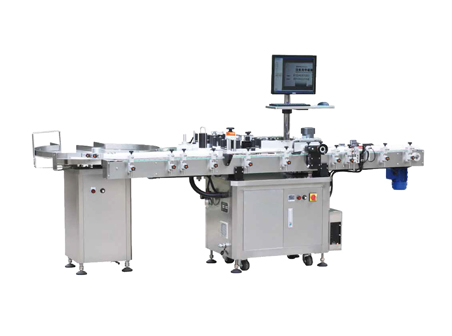

The S series labeling machine is used for labeling for various round bottles. The conveyor belt carries bottles to the bottles spacing mechanism, to maintain a certain distance between bottles and then moves to the wheel label attaching mechanism, bottle clamp mechanism rotates the bottle while the labeling head sticks the label to the bottle body, which completes labeling process.
Horizontal feed
Screw bottle spacing
High speed label feed
| Machine Model | S-280 |
| Labeling Speed | 0-20 bottles/min |
| Labeling Precision | ±1.5 mm |
| Maximum Label Size |
paper roll diameter 400 mm / paper roll inner diameter 76 mm |
| Motor power | 2 kW |
| Total Power | 2.5 kW |
| Roll diameter | 400 mm |
| Roll diameter (in) | 76 mm |
| Labeling precision | ≤ ±1.5 mm |
| Weight | 250 kg |
| Dimensions | 2100*1350*1400 mm |
