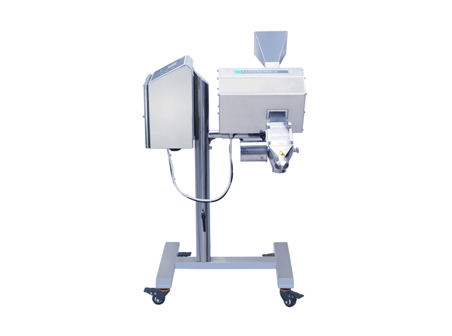

Metal detectors for tablets, capsules and pellets. It can detect magnetic and non-magnetic, embedded in the product of small metal chips and wire, online and fast (electric) rejection, can reduce material loss, does not affect normal production. High precision, high sensitivity and high stability. It can be used with any tablet press, capsule filling machine or packaging machine, or it can be used alone.
Design: modular, four combinations, accident handling, easy to replace and repair.
Height: height, angle of rotation and tilt are adjustable, movement.
Appearance: Full-mirror 304 stainless steel production, rejecting device and non-metallic product channel can meet the requirements of the pharmaceutical industry and FDA certification requirements, ordinary 220V qualified grounding power supply can work.
Clean: modular module for easy cleaning.
System: Product learning and effect suppression function, adapt to the detection of different products; 200 product storage functions, rapid replacement of product parameters, 1500 recipes (delete memory) storage function; built-in rejection clock, multi-program memory, password hierarchical control; Electrical protection.
Safety: A metal alarm is triggered immediately by a device failure. When the metal detector reaches the set time, an alarm will be issued, and the corresponding metal test ball is required to perform performance test to confirm whether the equipment is normal.

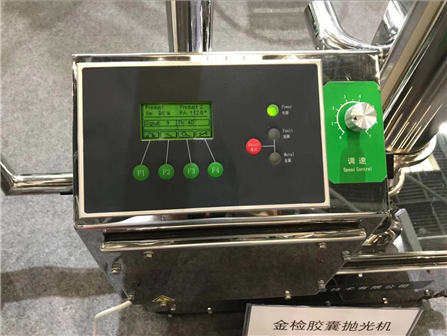

Operation: Intuitive access; multi-program memory; password grading control; performance verification process.
Precision: Adjustable, 100% inspection.
Rejection: The electric electromagnet rejects the flip to automatically remove metal contaminants.
Model: Can be customized to meet any type of tablet press and capsule filling machine.
Protect: IP65, meet HACCP certification requirements.
Power: 0.035kw/H，save energy.
Document: DQ, IQ, OQ, SOP, FAT, Material certification.
|
Model |
Detect precision |
Capacity Tablets/h |
Capacity Pills/h |
||
|
Fe(mm) |
SUS（mm） |
NoFe（mm） |
|||
|
T68/18 |
0.2 |
0.4 |
0.25 |
460000 |
250000 |
|
T60/30 |
0.2 |
0.4 |
0.25 |
600000 |
500000 |
