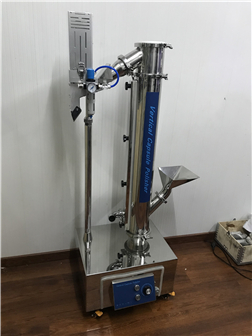

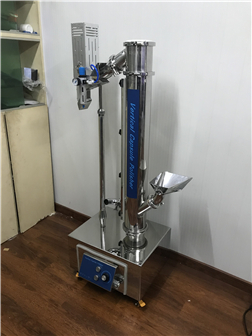

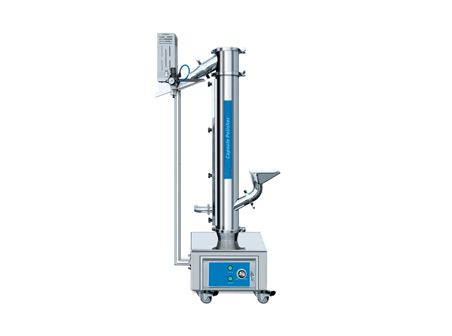

The LFP-150A series capsule polishing machine has the dual function of capsule polishing and lifting. The entrance of the machine can be connected with any type of capsule filling machine. The outlet can be used in conjunction with a capsule sorting device or a metal inspection machine. A continuous production mode that achieves polishing, lifting, sorting, and inspection. The machine uses a number of new technologies and human design concepts.
1. It has the dual functions of polishing and lifting the capsule, leaving a high space for connecting subsequent equipment.
2. The inlet and outlet of the machine can be adjusted 360 degrees, which is convenient for production and saves space.
3. Capsule sorting device can automatically sort out capsules with slight loading, empty shell, debris and body cap separation.
4. The whole machine adopts the quick-fit connection structure, which makes the disassembly and installation of the machine more convenient and quicker.
5. The parts in contact with the drug are made of 316L material or materials that meet the requirements of modern pharmaceutical production.
6. The brush on the spindle can be removed, cleaned thoroughly, and the machine is cleaned without dead ends. It meets the requirements of GMP.
| Model | LFP-150A |
| Capacity [capsules/min] | 300,000-60,000 |
| Power [Kw] | 0.2 |
| Power supply | 220V 50Hz 1 phase |
| Vacuum dust-intake | 3m3/min-0.014MPa |
| Compressed Air | 0.3m3/min-0.3MPa |
| Weight [kg] | 80 |
| Dimension [mm] | 740*510*1500 |
