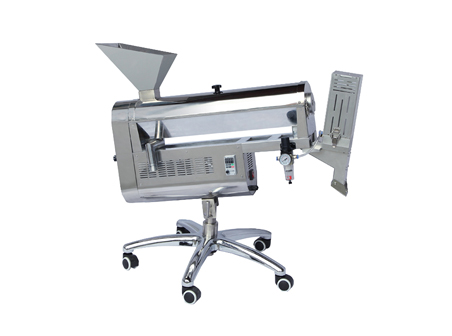

JFP-110A is a capsule polishing equipment with sorting function. It is not only used in capsule polishing and static eliminating, but also separating the unqualified products from good capsules automatically, such as low weight capsules, empty capsules, broken pieces and uncapped capsules. It is suitable for all capsule sizes. No need to replace its mold.
The performance of the machine is greatly excellent, the whole machine adopts stainless steel to be made, the selecting brush adopts quick clip connection with fast speed, convenience of dismantling, cleaning thoroughly, the rotation speed of motor is controlled by converter, it can bear great starting pressure with steady running, its socket is equipped with rolling device with flexible operation and high efficiency as well high purity of polishing. Defected products can be separated completely.
The whole machine adopts stainless steel material. The polishing brush adopts quick connection for convenient dismantling and cleaning. The rotation speed of the motor is controlled by the converter, it can bear strong starting pressure while ensure steady running. The machine base has casters for easy transport.
The machine is a simple operation, high efficiency with excellent polishing results. The defected capsules can also be separated completely.
Model | JFP-110A |
Capacity [capsules/min] | 150,000 |
Power [Kw] | 0.18 |
Power supply | 220V 50Hz 1 phase |
Vacuum dust-intake | 2.7m3/min-0.01MPa |
Compressed Air | 0.25m3/min-0.3MPa |
Weight [kg] | 40 |
Dimension [mm] | 1115*400*930 |
