Product Details:
Model:
Certification:
CE, cGMP, ISO9001:2010
Delivery Time:
60~90 days upon down payment and technical clarification
Payment Terms:
T/T, L/C

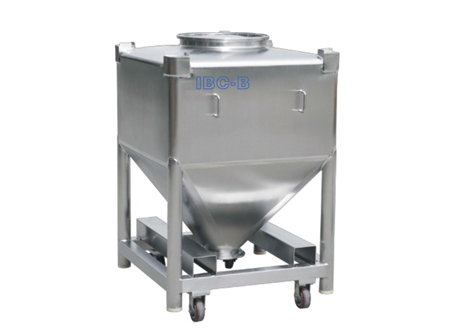

IBC-B is square shape intermediate bulk container used in pharmaceutical solid materials handling. IBC-B can work on AM BB Blender for blending and BL Bin Lifter for dispense.
Bin inside surface roughness ≤ 0.2μm; outside surface roughness ≤ 0.4μm.
Bin discharge is by butterfly valve, it can be manual or pneumatic/electric actuated.
The bin sealing parts are all sanitary silicone material of food grade.
Bin cleaning by manual or WS Automatic Washing Station system.
Inside mirror polish, outside satin finish
60° taper for mass discharge
Exchangeable accessory parts
Water tight discharge valve sealing
GMP compliant design, easy washing
Option
Automatic actuator opening discharge valve
| Model | Volume [L] | t | H1 | H2 | H3 | øD | ød | W | DN | Weight [kg] |
| IBC-B300 | 300 | 2.5 | 1118 | 960 | 138 | 400 | 125 | 794 | 200 | 145 |
| IBC-B400 | 400 | 2.5 | 1287 | 1130 | 165 | 400 | 125 | 794 | 200 | 155 |
| IBC-B600 | 600 | 2.5 | 1366 | 1200 | 151 | 500 | 125 | 994 | 200 | 185 |
| IBC-B800 | 800 | 2.5 | 1545 | 1375 | 118 | 500 | 125 | 994 | 200 | 200 |
| IBC-B1000 | 1000 | 2.5 | 1586 | 1400 | 168 | 500 | 150 | 1194 | 250 | 248 |
| IBC-B1200 | 1200 | 3 | 1736 | 1550 | 181 | 500 | 150 | 1194 | 250 | 285 |
| IBC-B1500 | 1500 | 3 | 1863 | 1680 | 99 | 500 | 150 | 1194 | 250 | 312 |
| IBC-B1800 | 1800 | 3 | 2032 | 1850 | 125 | 500 | 150 | 1194 | 250 | 328 |
| IBC-B2000 | 2000 | 3 | 2238 | 2055 | 113 | 500 | 150 | 1194 | 250 | 355 |
