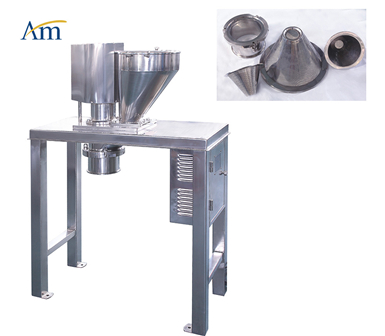

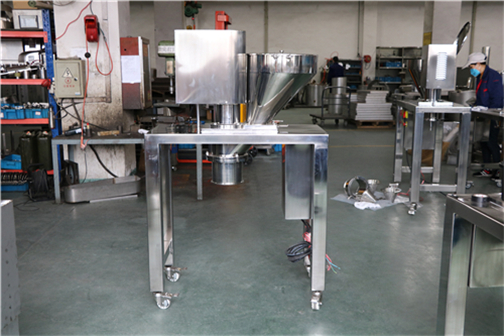

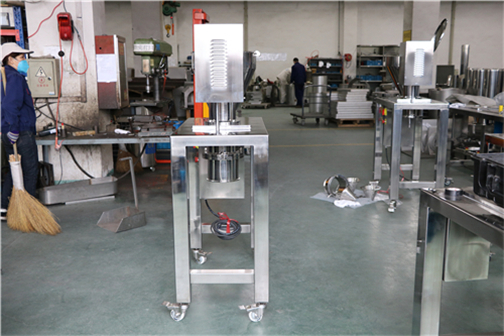

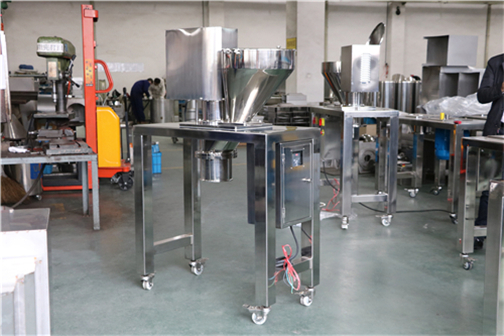

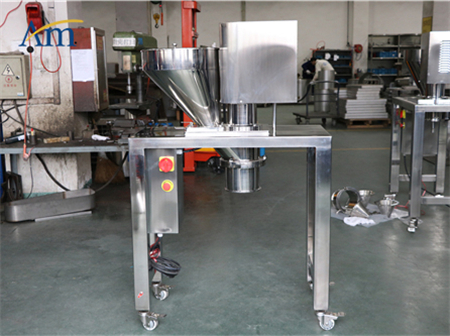

TCM Top-drive Cone Mill is movable top drive conical mill machine without lifting function. The four-caster easy transportation feature avails its application in many areas of the plant.

TCM Top-drive Cone Mill is mainly used for milling of raw materials, granulating of wet materials, granulating of dry materials in pharmaceutical, food, fine chemical processing industries.

The material to be processed enters into the feed inlet of it, which drops into the conical sieve chamber. The rotary knife plays a whirling action to the material, and throws the granules to the sieve mesh surface by centrifugal force, The granulates are ground into particles by the shearing action produced by the rotary knife and the sieve mesh, and discharged through the sieve apertures. The size of ground particles can be adjusted by the sieve mesh number, the gap between rotary knife and sieve mesh, and the rotary speed.

Applicable for dry milling and wet milling.

Patented shaft sealing.
Easy replacement of different size mesh sieve.
Easy adjustment of mill blade clearance between sieves.
Low heat emission.
High efficiency and stable running, low noise.
No dead corner, easy washing, GMP compliant design.
