PRODUCT
Oscillator
Product Details:
Model:
Certification:
CE, cGMP, ISO9001:2010
Delivery Time:
60~90 days upon down payment and technical clarification
Payment Terms:
T/T, L/C

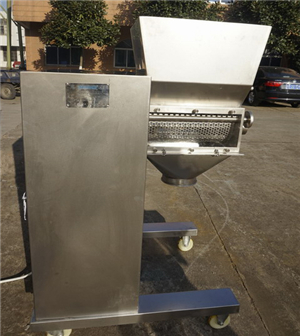

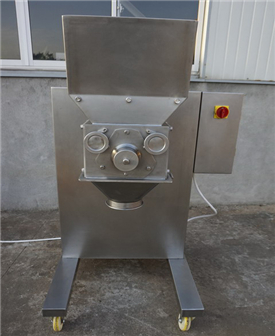

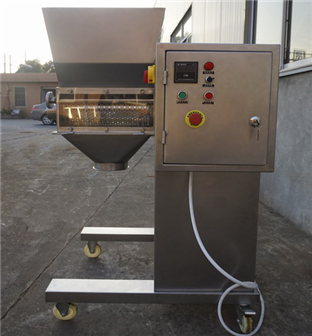

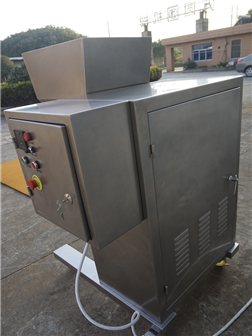

YK Oscillator is a widly used granulating machine for obtaining required granule sizes from wet materials, or for crushing coagulated material to granules to required size.
YK Oscillator is widely used in pharmaceutical, food and chemical industries for granulating granular products, candy and sugar mixture as well as barley milk products, porcelain and plastic mixtures.



GMP compliant design.

Easy cleaning and maintenance.
The rotating speed of the rotor is adjusted during operation.
Sieve can be easily removed and mounted, sieve tension is adjustable.
The driving mechanism is totally enclosed in the machine body. Its lubrication system ensures life cycle of the mechanical components.


Model YK-100 YK-160 YK-250
Max Capacity [kg/h] 30-200 100-300 150-400
Diameter [mm] ø120 ø160 ø250
Max Speed [rpm] 55 55 40
Power [kW] 1.1 2.2 5.5
Dimensions [mm] 700x400x1050 1000x800x1300 1300x920x1500
Machine Weight [kg] 280 380 550
