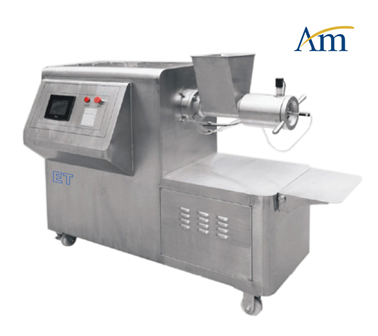

ET Extruder is the main equipment of the extrusion and spheronization process. It consists of the motor, speed reducer, drive device, hopper, screw feeder, the extrusion head, cap and frame. It is widely used in pharmaceutical, food and chemical industry.
Mobile machine frame, compact configuration, beautiful appearance, easy to dismounting and clean.
Match with different kinds of the blender, wet mixing granulator and centrifugal spheronizer.

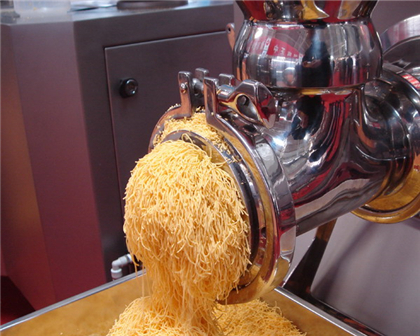

Different size plates to manufacture different diameters of cylinder extrudate.
Color touch screen, PLC controller and transducer.
Match with cooling and heating jacket, pressure sensor, printer and explosion-proof function.
| Model |
ET-50 Single Screw |
ET-100 Single Screw |
ET-150 Double Screw |
| Capacity [kg/h] | ≤ 15 | ≤ 100 | ≤ 400 |
| Min. Input [kg] | 0.2 | 0.5 | 4.0 |
| Sieve Pore Diameter [mm] | 0.6~3.0 | ||
| Rotate Speed [rpm] | 5~70 | 5~68 | 5~50 |
| Material Yield | ≥ 99% | ||
| Motor Power [kW] | 1.1 | 3 | 7.5 |
| Noise [dB] | ≤ 75 | ||
| Machine Weight [kg] | 300 | 660 | 880 |
| Dimensions [mm] | 1125x500x1300 | 1610x583x1275 | 1680x780x1550 |
