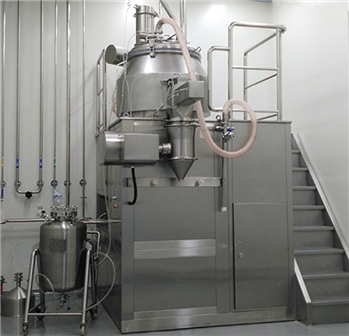

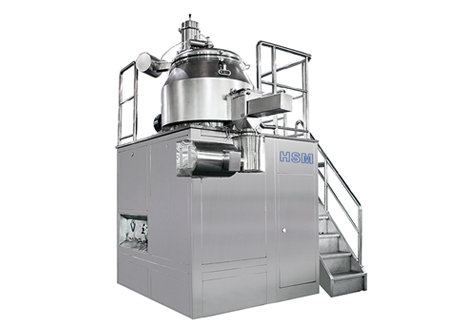

HSM High Shear Mixer is one of the main processing machineries in solid dosage mass production for mixing granules/powders and wet granulation. The machine is designed with a high operating platform for optimal process flow control and in-line milling system.
Common High Shear Mixer process time is about 12 mins.
Wet granulation finished products are of good flowability, easy to dose/handle, low hygroscopic and compact structure. The granules with good solubility and high bulk density, granuler size 20~80 mesh, equivalent to 0.18~0.85 mm.
It is also widely used in food, chemical industries for similar purposes.

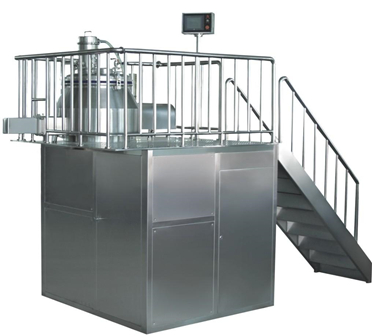

High operating platform
In-line cone mill system
End-point process control

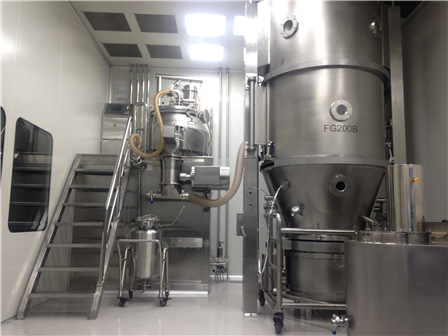

Closed transfer to fluid-bed
Traceability and repeatability
GMP compliant for pharmaceutical production
Options
Jacketed bowl
WIP wash-in-place
Explosion-proof design
Automatic solution adding - according to solution viscosity
Automatic raw materials feeding by vacuum
21 CFR part 11 compliant control system
| Model |
Machine Dimensions [mm] |
Bowl Volume [L] |
Capacity [kg] |
Impeller Speed [rpm] |
Cutter Speed [rpm] |
Total Power [kW] |
Machine Weight [T] |
| HSM75 | 2300x1750x3135 | 75 | 15~30 | 50~200 | 1000~2000 | 9.25 | 1.3 |
| HSM100 | 2300x1790x3155 | 100 | 20~40 | 50~200 | 1000~2000 | 16.1 | 1.5 |
| HSM150 | 2800x2440x3370 | 150 | 30~60 | 50~175 | 1000~2000 | 23.5 | 2.5 |
| HSM200 | 2800x2440x3645 | 200 | 40~80 | 50~175 | 1000~2000 | 23.5 | 2.7 |
| HSM300 | 2800x2455x3645 | 300 | 60~120 | 50~175 | 1000~2000 | 29 | 3.3 |
| HSM400 | 2800x2490x3700 | 400 | 80~160 | 50~175 | 1000~2000 | 33.5 | 3.4 |
| HSM500 | 2800x2860x3945 | 500 | 100~200 | 50~175 | 1000~2000 | 45 | 4.3 |
| HSM600 | 2800x2840x3945 | 600 | 120~240 | 50~175 | 1000~2000 | 53.5 | 4.8 |
| HSM800 | 2900x3140x4445 | 800 | 160~320 | 50~145 | 1000~2000 | 65.5 | 5.2 |
| HSM1000 | 3100x3200x4600 | 1000 | 200~400 | 50~120 | 1000~2000 | 75.5 | 6 |
