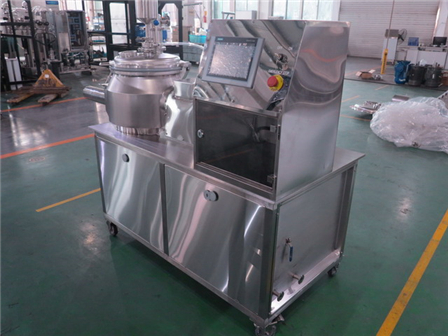

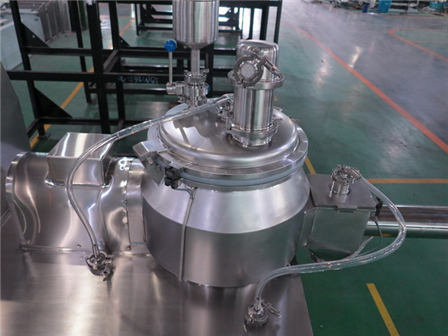

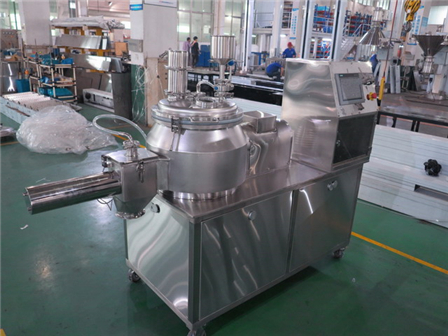

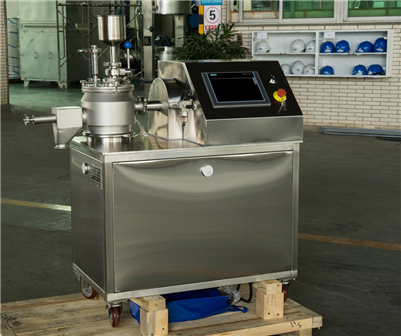

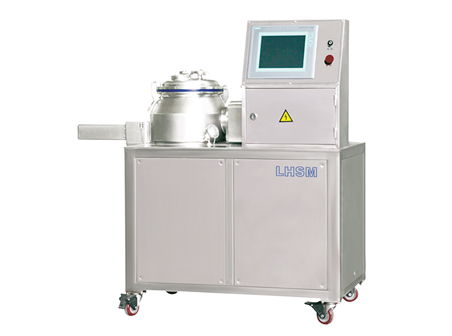

LHSM Lab High Shear Mixer is mainly used for mixing granules/powders and wet granulation in the pharmaceutical R&D and pilot scale production.
Common High Shear Mixer process time is about 12 mins.
Wet granulation finished products are of good flowability, easy to dose/handle, low hygroscopic and compact structure. The granules with good solubility and high bulk density, granuler size 20~80 mesh, equivalent to 0.18~0.85 mm.
It is also widely used in food, chemical industries for similar purposes.
Plug & play
Mobility with four casters
Changeable bowl for smaller batch run
End-point process control
Repeatability and traceability
GMP compliant for pharmaceutical production
Options
On-line print out
Jacketed bowl
Explosion-proof
21 CFR part 11 compliant control system
| Model |
Machine Dimensions [mm] |
Bowl Volume [L] |
Load Coefficient |
Capacity [kg] |
Impeller Speed [rpm] |
Cutter Speed [rpm] |
Total Power [kW] |
Machine Weight [T] |
| LHSM5 | 1090x550x1100 | 5 | 0.4~0.8 | 1~2 | 90~900 | 1000~2800 | 1.85 | 0.12 |
| LHSM10 | 1165x550x1355 | 10 | 0.4~0.8 | 2~4 | 90~900 | 1000~2800 | 1.85 | 0.25 |
| LHSM15 | 1720x650x1400 | 15 | 0.4~0.8 | 3~6 | 50~290 | 1000~2000 | 3.3 | 0.3 |
| LHSM25 | 1720x650x1455 | 25 | 0.4~0.8 | 5~10 | 50~200 | 1000~2000 | 3.3 | 0.3 |
| LHSM50 | 2080x800x1705 | 50 | 0.4~0.8 | 10~20 | 50~200 | 1000~2000 | 6.2 | 0.4 |
