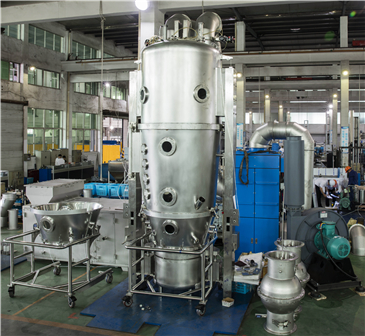

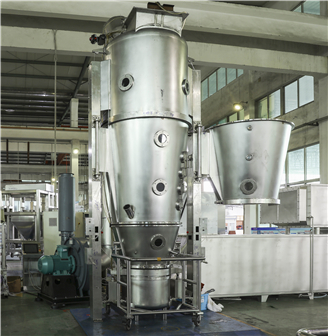

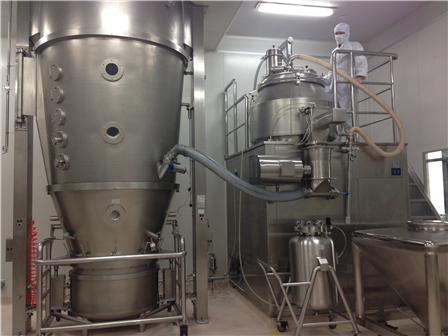

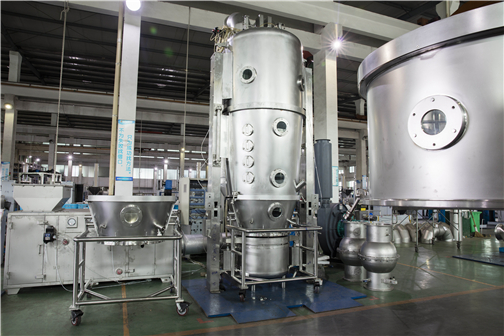

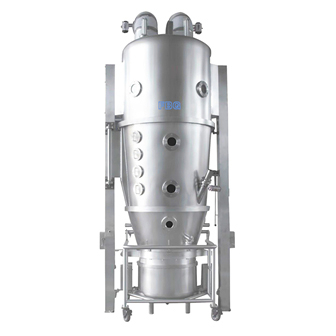

FBG Fluid-bed Granulator is mainly used for top spray granulation and drying in the pharmaceutical solid dosage production.
The system includes AHU, material bowl and processing chambers, exhaust air filtering units and control parts. Additionally, the system includes exchangeable bowls for other functions.
Top spray granulation
Filtered hot air blows up materials to fluidized state. A spray nozzle on the top sprays atomized binder solution and powders agglomerate in the fluidized flow. In this process, granulation and drying is finished in the single processor, so it is also called one-step granulation.
Top spray produced granules are of excellent solubility and low bulk density.
FBG Fluid-bed Granulator is the most common form of drying machine used in pharmaceutical production. It is also widely used in food, chemical industries for similar purposes.
Filter leakage detect
On-line sampling
End-point process control
Repeatability and traceability
GMP compliant for pharmaceutical production
Options
Vacuum charging/discharging
Explosion-proof @ 2 bar
Explosion-proof @ 10 bar
Process air dehumidification
Process air pre-heating
WIP wash-in-place setup
CFR 21 Part 11 compliant data collection system
| Model | FBG5 | FBG20 | FBG60 | FBG120 | FBG200 | FBG500 | |
| Bowl volume [L] | 29 | 73 | 221 | 484 | 739 | 1506 | |
| Max capacity [Kg/batch] | 5 | 20 | 60 | 120 | 200 | 500 | |
| Steam pressure [MPa] | 0.4~0.6 | ||||||
| Consumption [kg/h] | 80 | 166 | 166 | 420 | 480 | 620 | |
| Compressed air pressure [MPa] | 0.4~0.7 | ||||||
| Compressed air consumption [m³/min] | 2.1 | 2.5 | 2.7 | 3 | 3.8 | 4.5 | |
| Hot air regulating range [℃] | Room temperature ~ 120 | ||||||
| Intake air filtering | Primary filter G4, medium filter F8, HEPA filter H13 | ||||||
| Air fan power [kW] | 7.5 | 11 | 18.5 | 30 | 30 | 75 | |
| Dimensions [mm] |
1200x800 x3720 |
1480x1000 x4100 |
1700x1200 x4800 |
1890x1400 x5100 |
2090x1600 x5470 |
2490x2000 x5720 |
|
| Machine weigh [kg] | Main machine | 1800 | 2000 | 2500 | 3000 | 4000 | 7500 |
| AHU | 1100 | 1200 | 1300 | 1400 | 1500 | 1700 | |
| Dust collector | 700 | 700 | 800 | 900 | 900 | 1100 | |
| Air fan | 550 | 550 | 650 | 750 | 800 | 1000 | |
