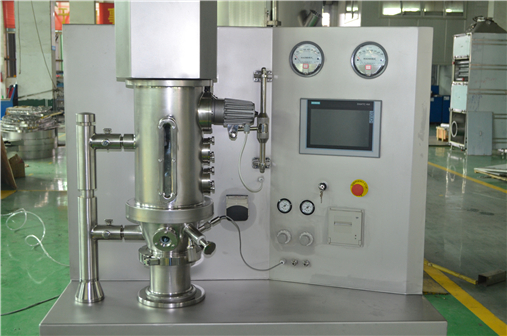

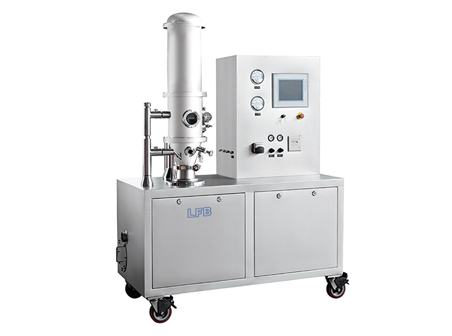

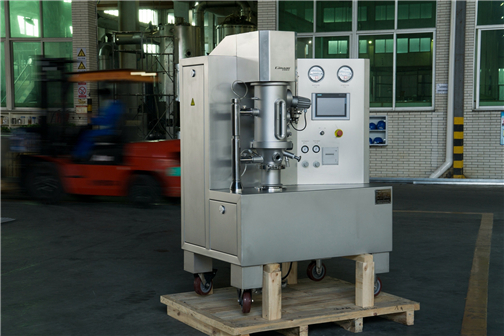

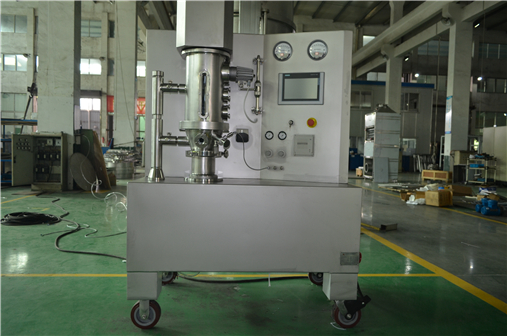

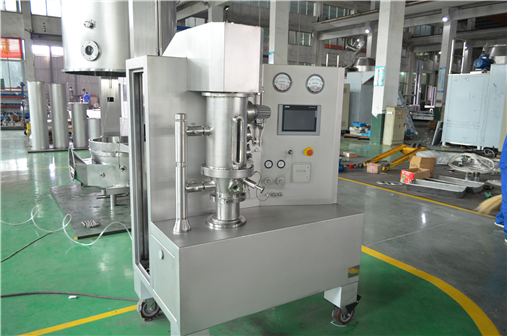

LFB Laboratory Fluid-bed is mainly used for drying granules in the pharmaceutical R&D and pilot scale production.
The system AHU, material bowl and processing chambers, exhaust air filtering units and control parts are all integrated into a movable system.
Additionally, the system can design with exchangeable bowls for different batch size processing.
The machine has top spray granulating, bottom spray coating functions. It is also widely used in food, chemical industries for similar purposes.
Plug & play
Mobility with four casters
Changeable bowl for a smaller batch run
Filter leakage detect
End-point process control
Repeatability and traceability
GMP compliant for pharmaceutical production
Options
Top spray
Bottom spray
Process air dehumidification
SCHLICK spray gun
Watson Marlow peristaltic pump
CFR 21 Part 11 compliant data collection system
| Model | LFB0.2 | LFB0.5 | LFB1 | LFB2 | LFB3 | LFB5 | |
|
Bowl Volume [L] |
Top Spray | 1.25 | 3 | 5.6 | 5.8 | 9 | 20 |
| Bottom Spray | 1.25 | 3 | 14 | 16 | 9 | 42.5 | |
| Tangential Spray | - | - | 5.9 | 7 | 8.5 | 15 | |
|
Max Capacity [Kg/batch] |
Top Spray | 0.2 | 0.5 | 1.5 | 2 | 3 | 6 |
| Bottom Spray | 0.2 | 0.3 | 1.2 | 2 | 2 | 2.6 | |
| Tangential Spray | - | - | 1 | 1 | 2 | 2.4 | |
| Compressed Air Pressure [MPa] | 0.4~0.7 | ||||||
|
Compressed Air Consumption [m³/min] |
0.15 | 0.15 | 0.15 | 0.15 | 0.8 | 1 | |
| Electric Heating Power [kW] | 2 | 3 | 4 | 4.5 | 9 | 18 | |
| Hot Air Regulating Range [°C] | Room temperature ~ 120 | ||||||
| Intake Air Filtering | Sub high efficiency filter or HEPA filter | ||||||
| Air Fan Power [kW] | 0.75 | 1.75 | 2.2 | 6 | 4 | 5.5 | |
| Dimensions [mm] |
1000x700 x900 |
1200x855 x1815 |
1600x855 x2220 |
1800x855 x2275 |
1800x855 x2520 |
2550x1100 x2710 |
|
| Machine Weight [kg] | 600 | 650 | 700 | 750 | 800 | 850 | |
