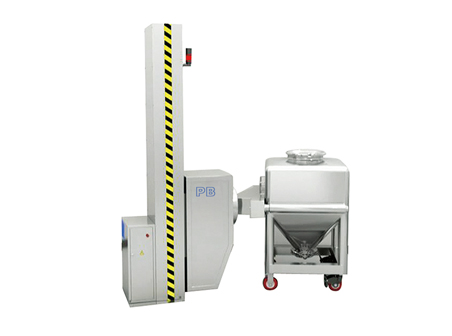

PB POST IBC Blender can automatically execute the whole blending cycle including lifting, clamping, mixing, orienting and lowering. The bin is detachable from the blender arms, this feature avails one blender to work with more bins of different volumes and meet the demand for diverse batch size blending. It is an ideal machine for total blending powders and granules in pharmaceutical plants, and also widely used in food, chemical industries etc.
Small footprint
Less material transfer
Variable blending speed
Safe auto orientation
Infrared sensor safety isolation
Traceability and repeatability
GMP compliant for pharmaceutical production
Options
Customerized capacity blender bin
Stainless steel fence isolation
Elevated discharge level
21 CFR part 11 compliant
| Model | Machine Dimensions [mm] |
Blending Speed [rpm] |
Total Volume [L] |
Load Coefficient |
Net Load [kg] |
Total Power [kW] |
Machine Weight [T] |
||
| Length | Working Width | Working Height | |||||||
| PB100 | 2200 | 1300 | 2000 | 3~20 | 100 | 0.5~0.8 | 50 | 2.2 | 0.8 |
| PB200 | 2250 | 1550 | 2100 | 3~20 | 200 | 0.5~0.8 | 100 | 2.6 | 0.9 |
| PB300 | 2500 | 1650 | 2200 | 3~20 | 300 | 0.5~0.8 | 150 | 3 | 1 |
| PB400 | 2650 | 1850 | 2300 | 3~20 | 400 | 0.5~0.8 | 200 | 4.4 | 1.2 |
| PB500 | 2800 | 1950 | 2400 | 3~15 | 500 | 0.5~0.8 | 250 | 4.4 | 1.4 |
| PB600 | 2900 | 2080 | 2400 | 3~15 | 600 | 0.5~0.8 | 300 | 5.2 | 1.7 |
| PB800 | 3000 | 2300 | 2500 | 3~15 | 800 | 0.5~0.8 | 400 | 5.2 | 2 |
| PB1000 | 3150 | 2350 | 2700 | 3~15 | 1000 | 0.5~0.8 | 500 | 6.2 | 2.2 |
