High precision dividing box

Machine system uses RU100DF RU80DF high precision dividing box to ensure working performance and long service life.

Manual & auto capsule switch

Capsule switch designed for safety and easy access.

Closed turret

The turret is closed design with cover, which is easy disassembly for cleaning.

Imported silicone sealing

Upper/lower die adopts imported silicone sealing for minimum powder into the turret. The silicone sealing is the easy replacement, no need to open turret.

Metering plate

The design of the metering plate was increased, which improved the powder flow in the metering plate and the filling dose was accurate.

Jog function

The machine has jog function on the touch screen for easy commissioning and maintenance.

Multi-dimensional adjust mechanism

Multi-dimensional base adjusts mechanism minimizes powder leakage, which optimizes filling precision to be within ± 3.5%. (Patent: 20042006795X)

The mechanism is easy cleaning and commissioning.

Automatic lubrication system

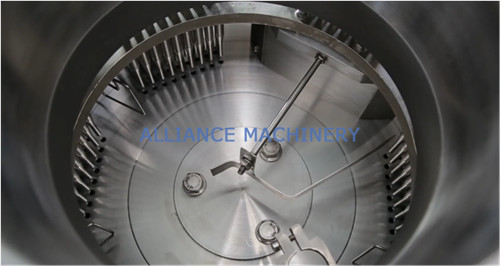

Double row silicone hopper

Double row silicone pad, no air supply, no dust flying

Mold purge cleaning

Compressed air purge mold surface and inside to clean sticky materials residue, which avoids sticks in capsules. The feature improves output capsules qualification rate.

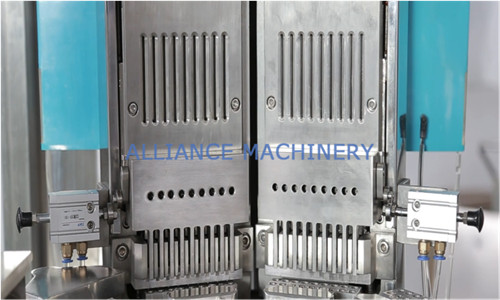

Modular closed powder filling mechanism

Modular design, easy disassembly, and installation, easy cleaning
