Semi-auto Capsule Filling Machine
Product Details:
Model:
Certification:
CE, cGMP, ISO9001:2010
Delivery Time:
60~90 days upon down payment and technical clarification
Payment Terms:
T/T, L/C

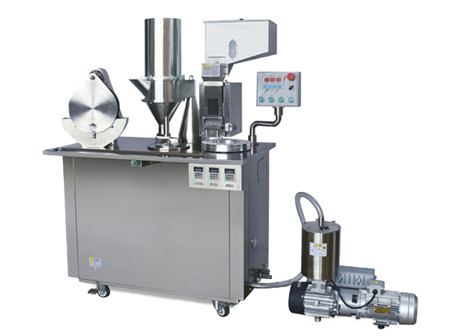

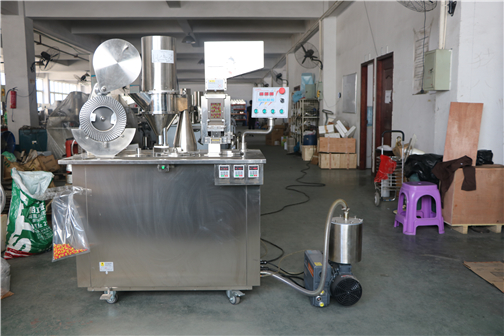

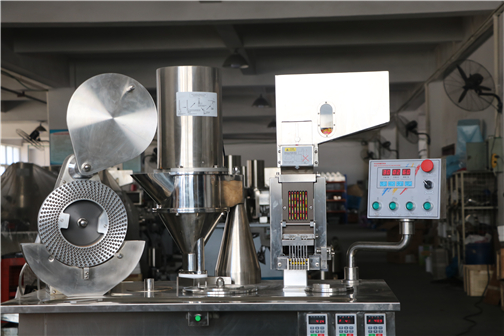

CGN208-D Semi-auto Capsule Filling Machine is our latest high efficiency model.

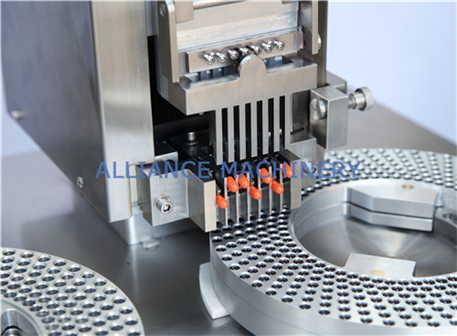

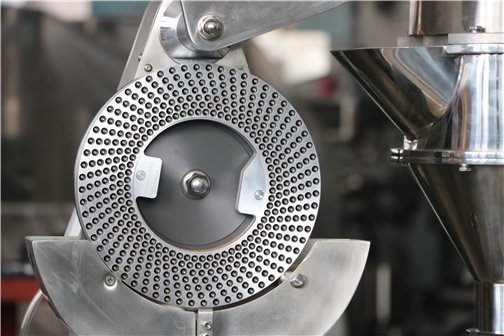

It is more easy operation, intuitive and higher efficiency in capsule dropping, orientation and vacuum separation in comparison with the old type. The new type of capsule orientation assembly adopts columns pin positioning, which shortens the mould replacement time from original 30 minutes to 5-8 minutes.
CGN208-D Semi-auto Capsule Filling Machine is the ideal equipment for capsule filling in small and medium-sized pharmaceutical companies, pharmaceutical research and development laboratories and hospital preparation rooms.
Automatic counting
Button control
Inverter control speed regulating
Parts replacement in 5-8 minutes
Button control
Inverter control speed regulating
Parts replacement in 5-8 minutes
| Model | CGN208-D |
| Capacity [pcs/hour] | 25,000-30,000 |
| Capsule Size | 000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#,4# |
| Power Supply | 380V 50Hz 3P |
| Power [kw] | 4 |
| Compressed Air | 0.03m3/min 0.7MPa |
| Vacuum pump [m3/h] | 40 |
| Mould Change Time[min] | 5-8 |
| Dimensions [mm] | 1140*700*1630 |
| Weight [kg] | 380 |
