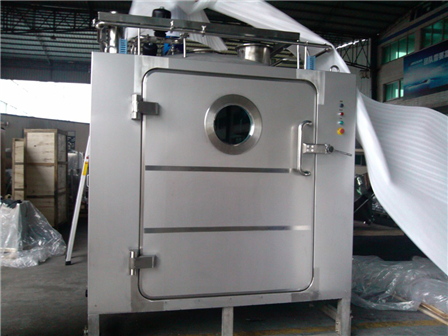

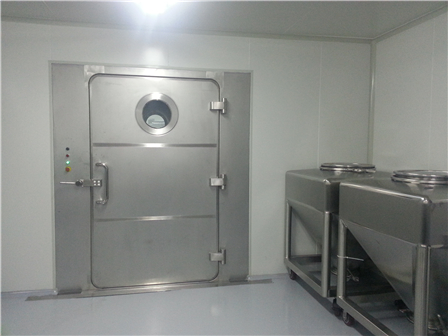

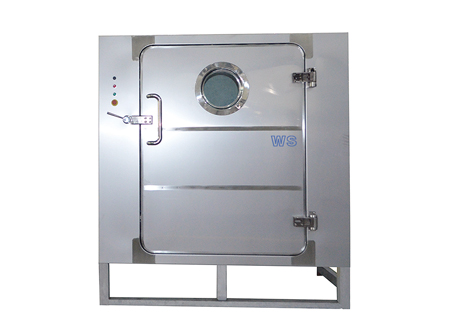

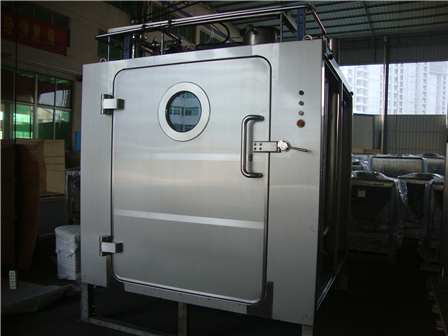

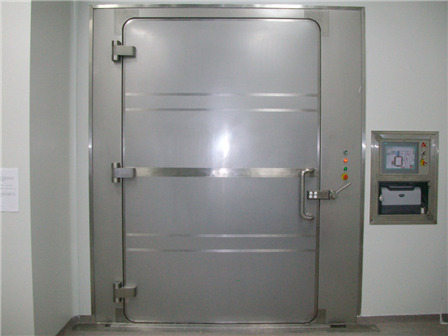

WS Bin Washing Station is automatic washing solution for bins and other containers in pharmaceutical industry. The system automatically executes complete washing and drying cycle according to process recipe. To be washed bins and washed bins are naturally isolated by the washing machine in two rooms. One main machine can wash different specifications of bins and containers. It is considered as the ideal measurable washing solution for containers in pharmaceutical industry.
Automatically washing blender bins, transfer bins and drums, providing a recordable and measurable washing standard for container cleaning.
Reduced labor intensity, improved production efficiency.
Traceable and identifiable washing procedure, validatable in the future.
The equipment is modular design, consisting of main machine, water treatment system, AHU, drying system and control system.
Flexible receipt setting, free combination of washing procedures and sequence for convenient application.
Washing chamber self-washing.
Rotating bin base for full cleaning coverage.
Applicable for washing bins of various sizes.
Options
Special drum carrier designed for cleaning drums.
Conductivity/TOC sensor and feedback of drainage water.
Lifting platform for entrance & exit.
Supply water storage tanks.
Model | WS800 | WS1000 | WS1200 | WS1500 | WS1800 | WS2000 | WS3000 |
Pump Power [kW] | 3 | 3 | 3 | 3 | 3 | 3 | 5.5 |
Pump Flow [t/h] | 10 | 10 | 10 | 10 | 10 | 10 | 15 |
Compressed Air Pressure [MPa] | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.67 |
Compressed Air Consumption [m³/min] | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
Steam Pressure [MPa] | 0.4 | ||||||
Steam Flow [kg/h] | 800 | ||||||
Blower Power [kW] | 1.5 | ||||||
Exhaust Fan Power [kW] | 5.5 | ||||||
Total Power [kW] | 11 | 11 | 11 | 11 | 11 | 11 | 13.5 |
Chamber Width [mm] | 1800 | 2100 | 2100 | 2100 | 2100 | 2100 | 2600 |
Machine Height from Floor [mm] | 2840 | 3000 | 3100 | 3250 | 3400 | 3600 | 4050 |
Machine Weight [T] | 3.9 | 4.1 | 4.1 | 4.3 | 4.3 | 4.6 | 4.6 |
