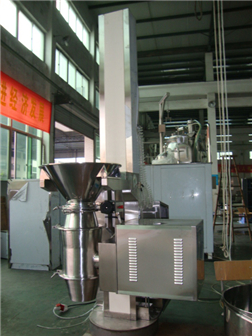

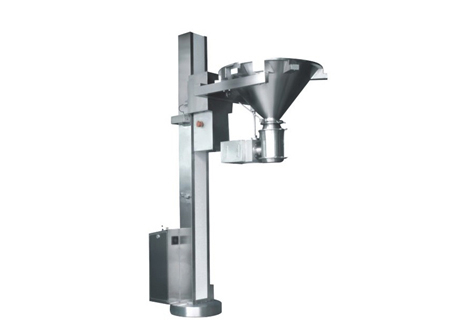

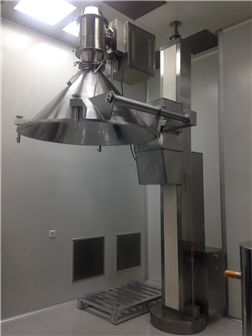

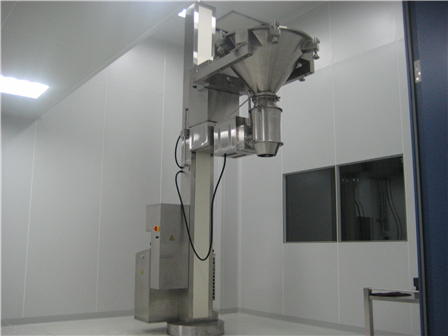

FBL Fluid-bed Bowl Lifter is mainly used in pharmaceutical solid dosage process for lifting FBG or FBD bowls and discharge to bin for batch mixing. Dry material is milled by in-line mill machine during gravity transfer for a good batch mixing result.

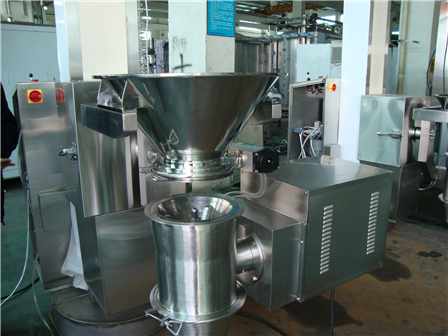

In-line mill machine
Stationary
Big size adaptor connecting with fluid-bed bowl
Precise positioning
Double-hand operation
Anti-misoperation butterfly valve
Closed transfer
Options
Explosion-proof design
Automatic open discharge butterfly valve
| Model | FBL50 | FBL100 | FBL200 | FBL300 | FBL500 | FBL800 | FBL1000 |
| Net Load [kg] | 50 | 100 | 200 | 300 | 500 | 800 | 1000 |
| Mill Capacity [kg/h] | 100 | 100 | 200 | 450 | 700 | 1000 | 1000 |
| Total Power [kW] | 2.9 | 2.8 | 3.85 | 5.75 | 7.55 | 9.25 | 9.25 |
| Dimensions [mm] |
1545x1350 x2100 |
1745x1650 x2800 |
2420x1750 x4200 |
2620x2060 x4400 |
2740x2280 x4800 |
2920x2440 x5000 |
3100x2700 x5000 |
| Machine Weight [kg] | 700 | 1000 | 1100 | 1200 | 1600 | 1800 | 1900 |
