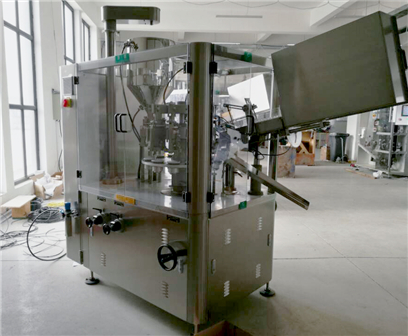

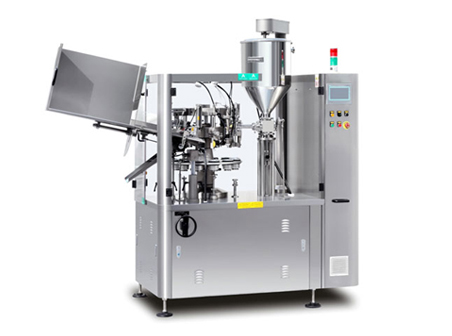

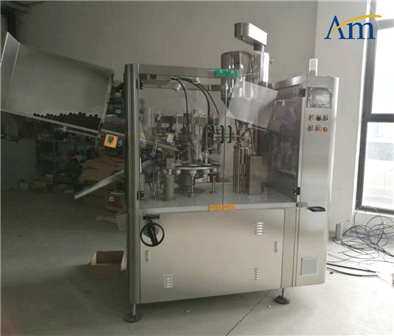

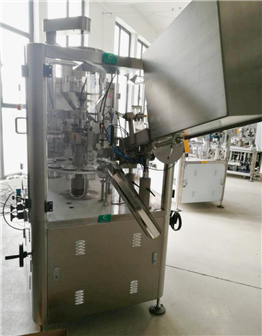

The Automatic tube filling machine RGF-100YC is mainly used to filling ointment materials into cylindrical,capped tubes of Aluminum or Composite and seal the tubes ends.In compliance with the standard of GMP dosing pump is a new type stainless steel butterfly valve for ointment filling a screw fine adjustment device is privided,so the ointment weighing is accurate.Thanks to the adption of the sophisticated accurately and reliably,change frequency to control the machine speed,Used Fukaishen indx drives and international advanced tube sealing systems.

1. Operation screen with LCD display PLC and buttons, easy operation and more humanization By stepless speed adjust, parameter set, output count, pressure index and failure display.

2. Automatically executing tube supply, photoelectron register, inert gas filling (optional), material filling and sealing, batch number printing, final products output.

3. High precision photoelectron register, reduced the chromatic aberration scope.
4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variety products producing).
5. Mechanical, photoelectron, electric, pneumatic integrative controlling, reaches no tube no filling function; waring if tube error position, pressure too low, automatic stop machine if open the protective door.

6. Applicable to: Plastic Composite tubes&Aluminum Plastic composite tubes
