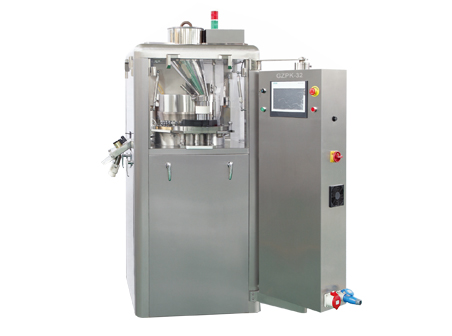

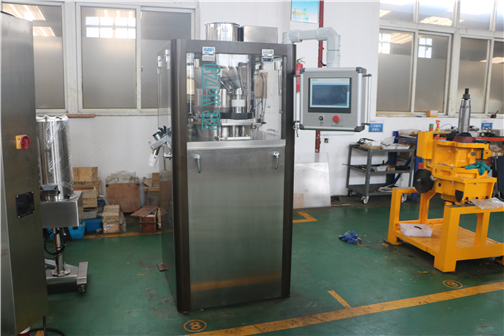

GZPK series Automatic high-speed rotary tablet press machine is our new design for the second generation products. It focuses on the technical features of domestic automatic high-speed rotary tablet machine, a great improvement in the structure of the machine and operation control. The machine adopts the structure of general body, general appearance, and can be replaced at the punch turret body, enabling the exchange of one machine with multiple models. The operation and control adopts industrial automatic control PLC, have larger development space, and the subsequent launch of new products can be compatible.
1. Automatic adjustment of the weight
2. Hydraulic system automatic function
3. Lubrication system automatic function
4. Waste system automatic function (customized)
5. Pressure over-qualified automatic shutdown function
6. The fault state automatically stops and pops up the alarm screen to prompt, and there is an audible and visual alarm.
7. Alarm status and protection function
8. Other electrical control functions
|
Machine Model |
GZPK-26 |
GZPK-32 |
GZPK-40 |
|
Station |
26 |
32 |
40 |
|
Capacity [tablets/h] |
Max:160000 Min:30000 |
Max:210000 Min:30000 |
Max:260000 Min:30000 |
|
Rotation speed [rpm] |
Max: 102 Min:11 |
Max: 105 Min:11 |
Max: 105 Min:11 |
|
Max. tablet diameter [mm] |
Ø25 |
Ø16 |
Ø13 |
|
Main pressure [kn] |
100 |
80 |
80 |
|
Pre-pressure [kn] |
20 |
20 |
20 |
|
Max. filling depth [mm] |
20 |
20 |
20 |
|
Dia. of die (mm) |
38.1 |
30.16 |
24.01 |
|
Length of punch [mm] |
133.6 |
133.6 |
133.6 |
|
Main motor power [kw] |
11 |
7.5 |
7.5 |
|
Dimension [mm] |
930(+438)*850(+438)* 1945 |
||
|
Weight [kg] |
1400 |
||
