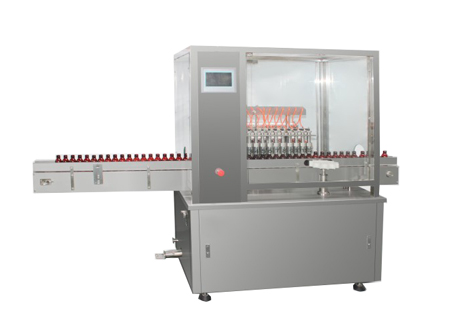

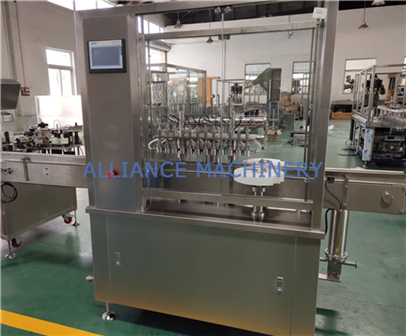

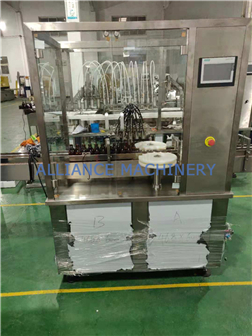

Linear Air Washing Machine
Product Details:
Model:
Certification:
CE, cGMP, ISO9001:2010
Delivery Time:
60~90 days upon down payment and technical clarification
Payment Terms:
T/T, L/C

This machine is mainly suitable for 100-300 ml round plastic bottles of various materials for bottle cleaning. When working, the noise is small, the loss is low, the work is stable, the output is stable, and it is especially suitable for mass production.



Working flow

After turn on the power, put the bottle by the bottle feeder and convey to the air washing station, first use ion wind to remove static electricity, and then use oil-free compressed air to blow air inside the bottle, and then suck the residual dust particles out of the machine

Simple structure
Wide application range
Adjustable speed to coordinate with production line

Machine Model ZCQX
Capacity [bottles/min] 80-100
Air pressure [MPa] 0.3-0.5
Air consumption 15m3/h, 0.6MPa
Power [kw] 2
Power supply 220V 50Hz
Dimension [mm] 2400*800*1700
