PRODUCT
Roller Ultrasonic Bottle Washing Machine
Product Details:
Model:
Certification:
CE, cGMP, ISO9001:2010
Delivery Time:
60~90 days upon down payment and technical clarification
Payment Terms:
T/T, L/C

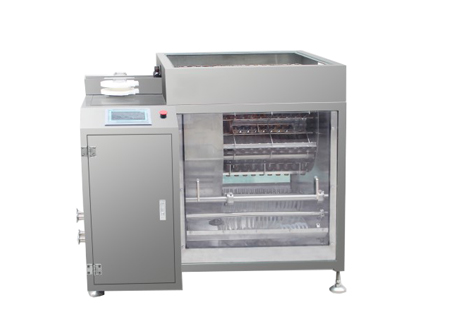

This machine is mainly used for internal and external cleaning of 30-250ml round bottles or shoulder-shaped shaped bottles. After the machine is replaced with specifications, it is suitable for multi-standard products, and the overall replacement of the mold is convenient and quick.

Working principle
First, the cavitation and coarse washing are carried out by ultrasonic waves, and then washed by tap water once, rinsed with pure water once, and finally the residual water beads in the bottle are refined by the oil-free compressed air to make the bottle meet the raw process requirements.

Machine Model JKGP
Capacity [bottles/min] 100-150
Air pressure [MPa] 0.3-0.5
Air consumption 15m3/h, 0.6MPa
Power [kw] 0.25
Power supply 220V 50Hz
Dimension [mm] 1100*1000*980
